LimbSal Ortho is a 3D printed customized implant, 3D incredible with its high-quality additive manufacturing has been able to produce customized implants for the patients.

Indications for requirement of implant:

- Bone Tumors- Benign Tumors and Malignant Tumors

i) Osteosarcoma
which occurs mostly in children and adolescents, is the second most common type ofbone cancer. This usually develops around the hip, shoulder, or knee. This tumor grows rapidly and tends to spread to other parts of the body

ii) Ewing sarcoma family of tumors (ESFTs)
Ewing sarcoma family of tumors (ESFTs) strikes adolescents and young adults, but these tumors can sometimes affect children as young as 5 years old. This type of bone cancer usually shows up in the legs (long bones), pelvis, backbone, ribs, upper arms, and the skull.

iii) Chondrosarcoma
Middle-aged people and older adults are more likely than other age groups to develop chondrosarcoma. This type of bone cancer usually develops in the hips, shoulders, and pelvis.


- Secondary or Tertiary joint prosthesis revision

Line of treatment

ECRT:

Extracorporeal radiation and reimplantation (ECRT) is a type of limb salvage surgery, performed in individuals suffering with bone sarcoma. ECRT is an established form of biological salvage method where the cancer affected bone is sterilised with high dose radiation, thereby effectively killing the cancer cells. Such radiated bone tissue segment is fixed back using customized plates.

Total Reconstruction:

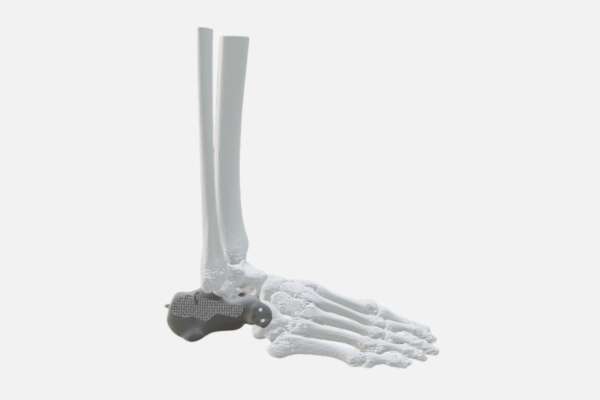

Where large malignant tumor is extracted and results in loss of bone. Such gap is reconstructed using customized implants

Revision Case:

Secondary and Tertiary joint revision case, standard size implants are not available.

Pre – requisites

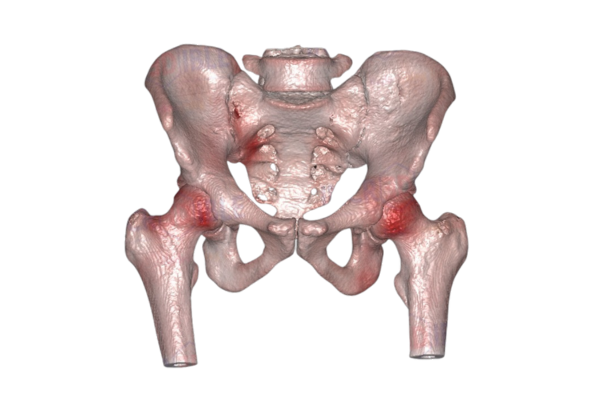

  • 1 mm slice thickness cut CT scan of patient to recreate bony anatomy
  • 1 mm slice thickness cut MRI scan of patient to recreate soft tissue anatomy
  • Understanding of pathology
  • Understanding of chemo cycle and window period to address lead time
  • Understanding of resection plane
  • Understanding anatomy model, jig and implant requirement

Product/Services/Solution

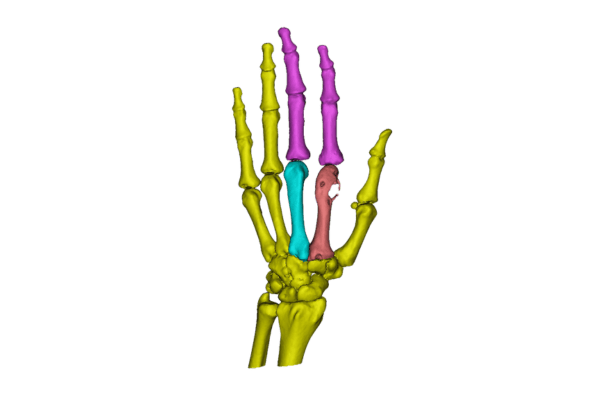

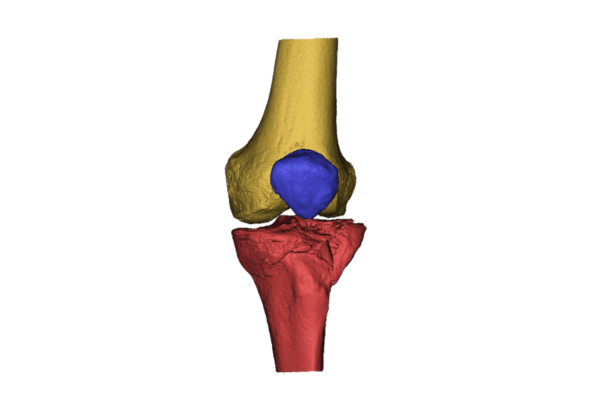

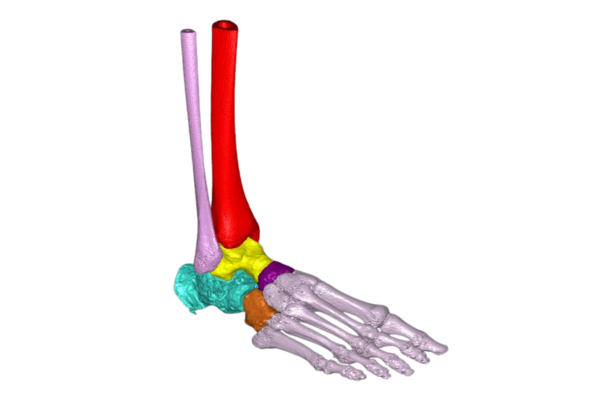

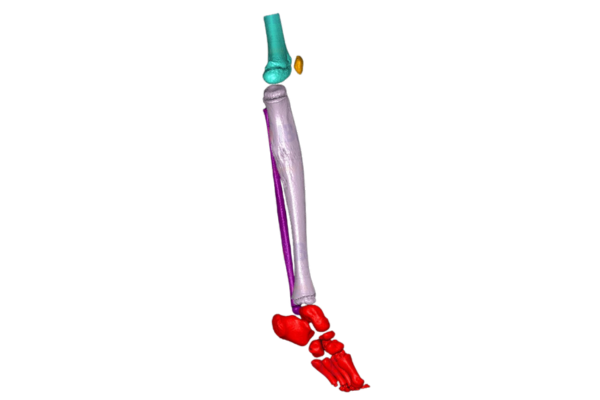

Patient Specific Anatomy Models

  • It is available in material of choice as per indication and requirement like PLA, ABS, Nylon, Sandstone, Silicon
  • Excellent tool to study and pre-surgical planning.
  • 1:1 r model and can perform drilling, cutting operations
  • Excellent detailing of defect/lesion/tumor
  • Bio-compatible, Autoclavable & ETO sterilization compatible

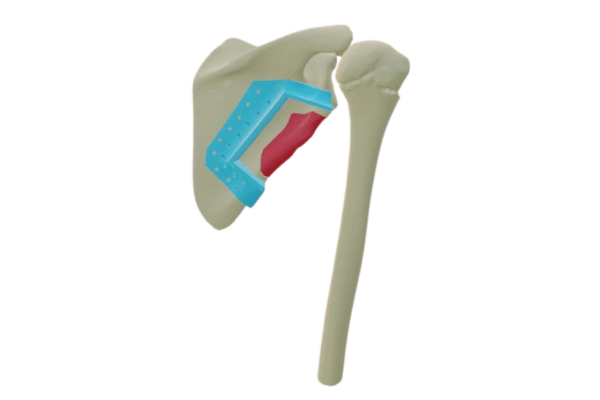

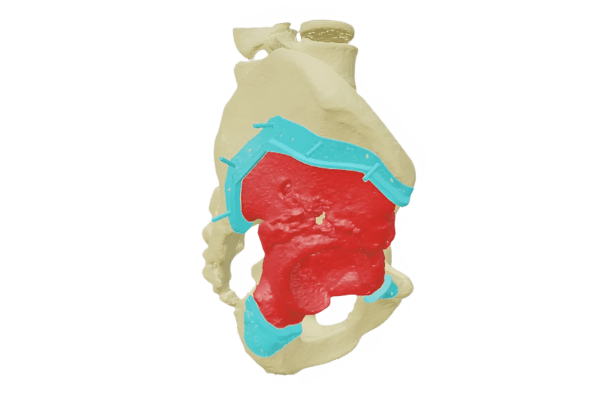

Patient Specific/Customized Jigs

  • Customization as per surgeons requirement
  • It is available in material of choice as per indication and requirement like PLA, ABS, Nylon, Ti6Al4V-ELI
  • Precise resection of bone tissues to the perfection.
  • Easy to use & conserves bone tissue.
  • Bio-compatible, Autoclavable & ETO sterilization compatible.
  • Useful to place/fix implant perfectly.

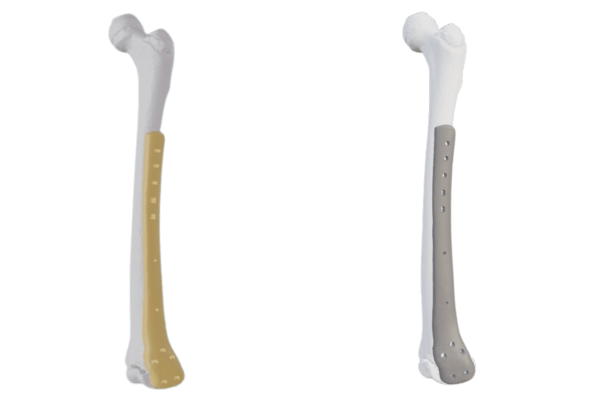

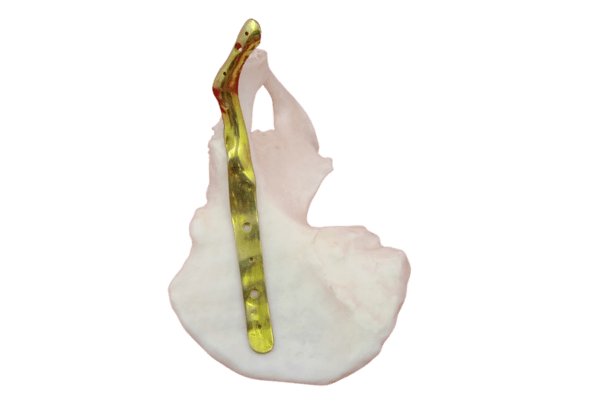

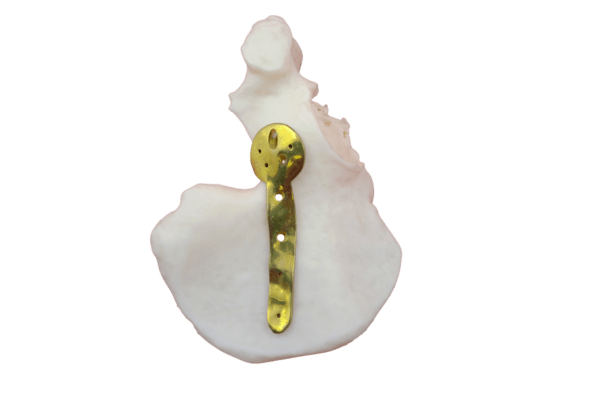

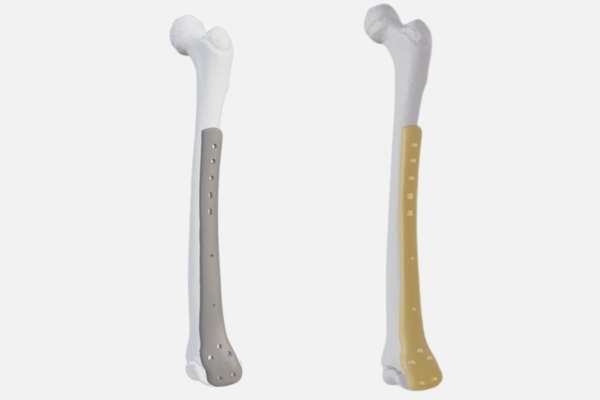

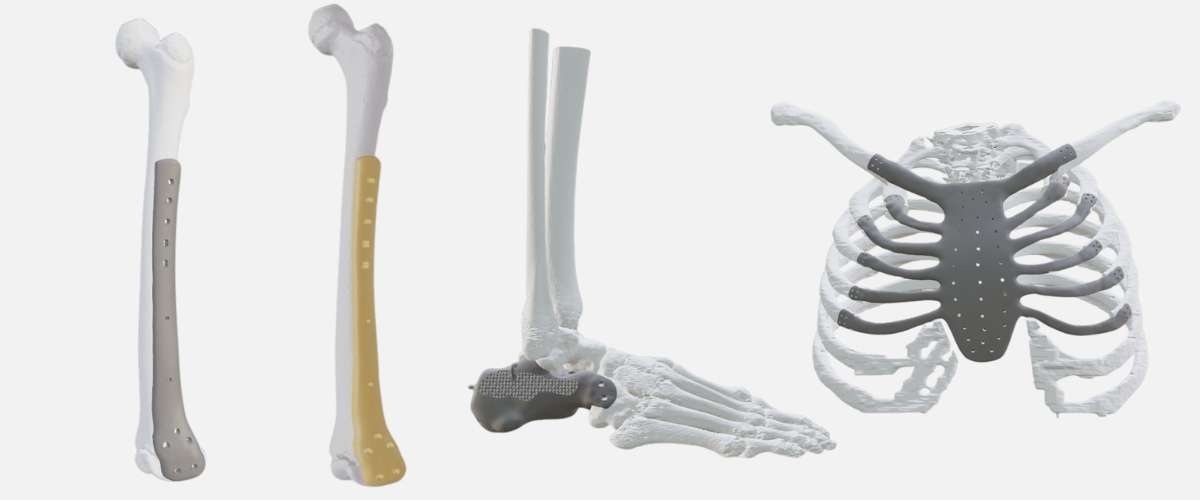

Patient Specific/Customized Plates

  • Ideal for ECRT line of treatment; enhances surgery outcome.
  • Specific to patient defect/anatomy results in perfect fit.
  • Customization as per surgeons requirement.
  • Variable thickness as per surgeon’s requirement.
  • Finite Element Analysis for each design to ensure strength, stability & functionality.
  • Customized screw specifications
    • Screw location selection as per requirement.
    • Variable screw diameter per screw is possible.
    • Various combination of locking holes, cortical holes, compression & combi holes.
    • Pre-defined trajectory for every hole gives long stability

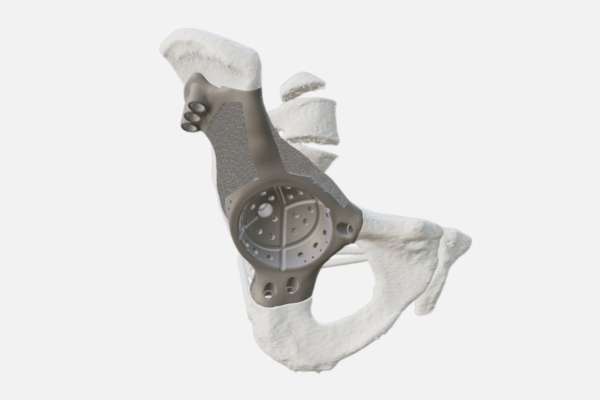

Patient Specific/Customized HIP Reconstruction Implant

  • Specific to patient defect/anatomy results in perfect fit.
  • Customization as per surgeons requirement.
  • Variable thickness as per surgeon’s requirement.
  • Finite Element Analysis for each design to ensure strength, stability & functionality.
  • Bio-mechanically suitable lattice structures to attain desired porosity, better osteointegration, better weight management.
  • Customized screw specifications:-
    • Screw location selection as per requirement.
    • Variable screw diameter per screw is possible.
    • Various combination of locking holes, cortical holes, compression & combi holes.
    • Pre-defined trajectory for every hole gives long stability
